Incorporating the pattern in the design according to the air flow.
![](https://static.wixstatic.com/media/37ff3f_60390de7098f44f39f18a4b1455aac30~mv2.jpeg/v1/crop/x_227,y_290,w_763,h_725/fill/w_147,h_140,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/37ff3f_60390de7098f44f39f18a4b1455aac30~mv2.jpeg)
![](https://static.wixstatic.com/media/37ff3f_655f7a7120b640a794c997d02017e92f~mv2.png/v1/fill/w_82,h_137,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/37ff3f_655f7a7120b640a794c997d02017e92f~mv2.png)
![](https://static.wixstatic.com/media/37ff3f_0d64f563e79c48119c38002ddd69ed25~mv2_d_3509_2550_s_4_2.jpg/v1/crop/x_27,y_18,w_3482,h_2368/fill/w_147,h_100,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/37ff3f_0d64f563e79c48119c38002ddd69ed25~mv2_d_3509_2550_s_4_2.jpg)
![](https://static.wixstatic.com/media/37ff3f_cddc04dc1a0649ee8b559f67ede92553~mv2_d_2374_1216_s_2.jpg/v1/fill/w_147,h_75,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/37ff3f_cddc04dc1a0649ee8b559f67ede92553~mv2_d_2374_1216_s_2.jpg)
![](https://static.wixstatic.com/media/37ff3f_5ceb17c5a4d84a6fac4faf0cbcc417f1~mv2.gif)
![](https://static.wixstatic.com/media/37ff3f_05ced97dae474510b94913c95109b507~mv2.gif)
![](https://static.wixstatic.com/media/37ff3f_93e37eb656bc456b9319928a2f087276~mv2.jpg/v1/fill/w_147,h_56,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/37ff3f_93e37eb656bc456b9319928a2f087276~mv2.jpg)
![](https://static.wixstatic.com/media/37ff3f_8fdbb1a77afb49d991585b6d45498915~mv2.jpg/v1/fill/w_147,h_104,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/37ff3f_8fdbb1a77afb49d991585b6d45498915~mv2.jpg)

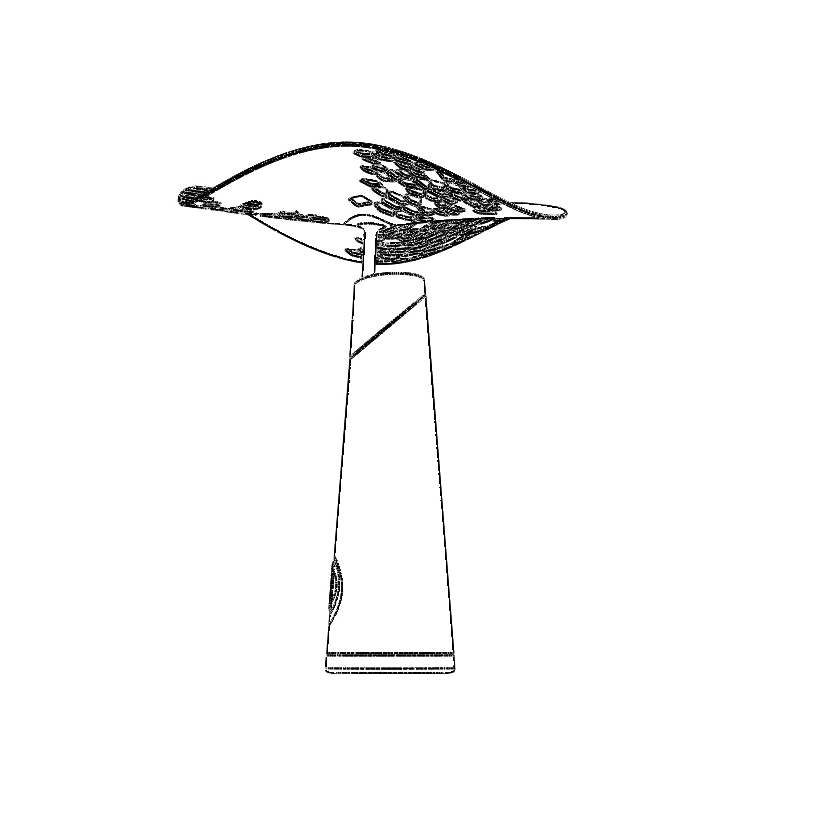

Single-wing fan
![](https://static.wixstatic.com/media/37ff3f_dbcdcb1de7e945f383e84d344a146479~mv2.png/v1/fill/w_49,h_35,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/37ff3f_dbcdcb1de7e945f383e84d344a146479~mv2.png)
The rotation in the 45 degrees angle, with a circular face to allow smooth looking movement
Two products from the same family: a fan and a heater.
Heater | Cooler design
Designing a set of items for heating and cooling for indoor placement: the fan and the heater and designed as a collection.
Designing the fan I explored the idea of "net free fan" - all fans have wings and a net for protection. In this design I tested a single layer of wings + net, that is still just as functional.
The heater is using a reflector to reflect the heat back to the user, creating a pleasant heat and an interesting look.
Using parametric design for creating the holes in the right area, is a suggestion for the usage of digital manufacturing process for a future mass customized products, enabling many variation in the production line.
Year : 2015
Academic supervisor : Safi Hefez
